Example solar electric
grid-tie inverter system
20 Module 305w Solar Module
1 Roof Mount UniRac 10x2 Roof Mount
1 Combiner MNPV6-250 DISCO
2 Cable Output Cable 20' MC4 10AWG
2 Breaker 15A 150VDC
1 Rapid SD MidNite Transmitter
1 Rapid SD MidNite Receiver
1 Inverter SMA Sunny Boy 6.0TL
1 Arrestor MidNite MNSPD300
2 Ground weeb Assembled 6.7
6 Connector Strain Relief Heyco 1 hole
1 Connector Strain Relief Heyco 2 hole
| Sub Total |
$8,800 |
| Shipping |
TBD |
| Total |
$8,800 |
| |
|
| Fed Tex Credit |
$(2,664) |
| Adjusted Total |
$6,216 |
************
| Qty |
Item |
Description |
| 10 |
module |

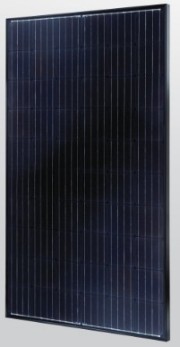

Mission Solar MSE300SQ5T |
| 1 |
Roof Mount |
IronRidge 2x5 Portrait |
| 1 |
Combiner |
Quick Mount Flashed J Box |
| 2 |
Cables |
Output Cable 20' MC4 10AWG |
| 2 |
Fuse Holders |
Touch safe DIN mount |
| 3 |
Fuses |
Bussman, Midget Fuse 20A |
| 1 |
Disconnect |
SQD 30A Fused D221NRB |
| 1 |
Disconnect |
SQD 60A 600VDC Unfused HU362RB |
| 1 |
Ground Kit |
SQD Ground Kit 3 Term 4AWG Max |
| 1 |
Inverter |
SMA Sunny Boy 3.0-US |
| Sub Total |
$5,767.00 |
| Shipping |
TBD |
| |
|
| Total |
$5,767.00 |
| Fed Tax Credit (30%) |
$(1,730.10) |
| Total |
$4,036.90 |
************ |
